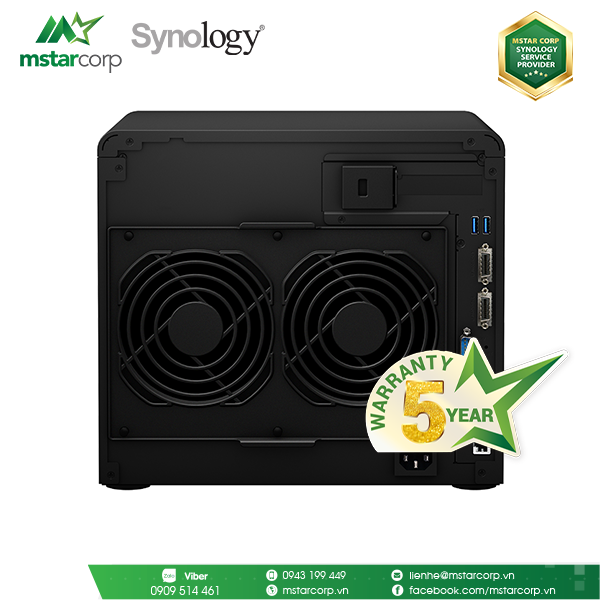

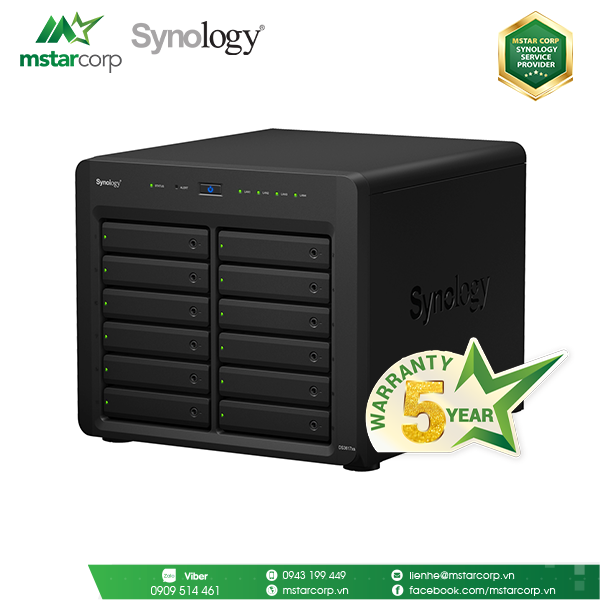

NAS Synology DS3617xs (Ngưng sản xuất )

Hết hàng
Liên hệ

Mô tả

Thông tin sản phẩm

  • CPU: Intel Xeon D-1527 4-core 2.2 GHz.
  • RAM: 16 GB DDR4 ECC SODIMM, up to 48 GB.
  • Số lượng ổ cứng: Lên đến 36-bay SATA 3.5" / 2,5".
  • Dung lượng tối đa: 576TB.
  • LAN RJ-45: 4
  • Bảo hành: 5 năm

Khi mua hàng tại Mstar Corp, chúng tôi cam kết:

  • Giao hàng từ 2 – 4 giờ cho các đơn nội thành.
  • 30 ngày đổi trả sản phẩm.
  • Miễn phí cài đặt 9 bước gói M-Service độc quyền tại Mstar Corp.

Mstar Corp - đơn vị duy nhất tại Việt Nam được Synology công nhận là Service Provider. Tiên phong triển khai giải pháp lưu trữ cho mọi doanh nghiệp và là nơi có đội ngũ kỹ thuật chuyên môn cao về NAS Synology.

Với hơn 12 năm kinh nghiệm trong ngành CNTT đã triển khai cho nhiều doanh nghiệp từ nhỏ đến lớn, từ doanh nghiệp tư nhân cho đến chính phủ. Cũng như triển khai các giải pháp cho ngân hàng, bệnh viện hay chuỗi khách sạn, chuỗi nhà hàng...

Ngoài ra Mstar Corp còn là có Showroom trải nghiệm các sản phẩm NAS Synology duy nhất tại Việt Nam. Khi khách hàng tới Showroom sẽ được trải nghiệm người dùng thực NAS Synology và được hướng dẫn kỹ thuật.



  • Đối với những thiết bị bán ra trong vòng 01 tháng đầu nếu có bất kỳ lỗi sản phẩm do lỗi của nhà sản xuất, khách hàng sẽ được “1 đổi 1sản phẩm mới 100% trong vòng 18 ngày làm việc và được hỗ trợ thiết bị thay thế tạm thời để đảm bảo cho hệ thống được hoạt động.
  • Đối với những thiết bị bán ra từ ngày mua đến hết thời hạn bảo hành, nếu có bất kỳ lỗi do sản phẩm: Chúng tôi sẽ nhận sản phẩm – kiểm tra – xử lý và phản hồi cho khách hàng không quá 07 ngày làm việc.

Những hoạt động Event Mstar Corp tổ chức

Mstar Corp đã tổ chức rất nhiều event chia sẻ về các giải pháp của NAS Synology để thực hiện việc " Công nghệ hóa - Chuyển đổi số " cho các doanh nghiệp. Từ Thành Phố Hồ Chí Minh ra Đà Nẵng và cả Hà Nội. Dưới đây là một số hình ảnh của Event Mstar Corp tổ chức.

Hiểu được sự khó khăn khi lưu trữ và bảo dữ liệu của cá nhân, gia đình hay doanh nghiệp. Synology cho ra thị trường sản phẩm NAS Synology để đảm bảo việc lưu trữ và bảo vệ dữ liệu hoàn hảo cho người  dùng.

Dưới đây là một số tính năng nổi bật của NAS Synology:

1. Là giải pháp thay thế File Server truyền thống

NAS Synology được thiết kế không chỉ cung cấp khả năng truy cập dữ liệu dễ dàng trong mạng nội bộ mà còn có thể truy cập từ xa thông qua Web-based File Station, hoặc FTP Service của NAS Synology. Dễ dàng quản lý và sử dụng: Sử dụng giao diện web đơn giản, dễ hiểu, một người quản lý văn phòng có thể dễ dàng quản lý các NAS Synology, mà không cần biết quá nhiều về CNTT. Hơn nữa với một giao diện dựa trên web, bạn có thể quản lý máy chủ từ bất kỳ đâu với một trình duyệt web đơn giản.

2. Giải pháp Backup đa nền tảng

Sản phẩm NAS Synology miễn phí sử dụng các ứng dụng Backup dùng để backup dữ liệu đa nền tảng như: Hyper Backup, Active Backup For Business, Cloud Sync..
Hiện nay, Mstar Corp đang là đơn vị tiên phong về việc triển khai giải pháp Backup 3-2-1 cho khách hàng để đảm bảo an toàn dữ liệu lên đến 99%.

3. Giải pháp giám sát

Giải pháp giám sát camera cho doanh nghiệp, chuỗi nhà hàng, bệnh viện, ngân hàng,…

Và nhiều ứng dụng – giải pháp của NAS Synology cho doanh nghiệp. Tìm hiểu thêm tại: https://synologyvietnam.vn/


THÔNG TIN LIÊN HỆ: MSTAR CORP

Hotline: 0943199449 – 0909514461

Email: info@mstarcorp.vn

Fanpage: https://www.facebook.com/mstarcorp/

Group hỗ trợ kỹ thuật: https://www.facebook.com/groups/synologyvn/

Website: mstarcorp.vn

Trụ sở: Tầng 1, 75 Hoàng Văn Thụ, phường 15, quận Phú Nhuận, TP. HCM

Chi nhánh Hà Nội : Tầng 11, tòa nhà Zen Tower, 12 đường Khuất Duy Tiến, P.Thanh Xuân Trung, Q. Thanh Xuân, TP. Hà Nội

CPU
CPU Model Intel Xeon D-1527
CPU Architecture 64-bit
CPU Frequency Quad Core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 16 GB DDR4 ECC SO-DIMM
Memory Module Pre-installed 8 GB x 2
Total Memory Slots 4
Memory Expandable up to 48 GB (16 GB + 16 GB x 2)
Storage
Drive Bay(s) 12
Maximum Drive Bays with Expansion Unit 36
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 360 TB (10 TB HDD x 36) (Capacity may vary by RAID types)
Maximum Single Volume Size
  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable Drive
External Ports
USB 3.0 Port 2
Expansion Port 2
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm
Weight 9.8 kg
Others
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
Wake on LAN/WAN
PCIe Slot for Network Card (See more) 1 x Gen3 x8 slot (x8 link)
System Fan 120 mm x 120 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Wireless Support (dongle)
Power Recovery
Noise Level* 22.3 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 108.2 W (Access)
53.4 W (HDD Hibernation)
British Thermal Unit 369.4 BTU/hr (Access)
182.3 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 5 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications
Storage Management
Maximum Internal Volume Number 1024
Maximum iSCSI Target Number 64
Maximum iSCSI LUN 512
iSCSI LUN Clone/Snapshot, Windows ODX
RAID Group
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
Volume Expansion by Adding a HDD
  • RAID F1
  • RAID 5
  • RAID 6
  • JBOD
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
SSD Support
SSD Read/Write Cache (White Paper)
SSD TRIM
File Sharing Capacity
Maximum Local User Accounts 16000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 16
Maximum Concurrent CIFS/AFP/FTP Connections 2048
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
High Availability Manager
Log Center
Syslog Events per Second 3000
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
OpenStack
Add-on Packages (learn more about the complete add-on package list)
Antivirus by McAfee (Trial)
Central Management System
Chat
Maximum Users 1600
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when testing the recommended number of clients.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Concurrent File Transfers 2000
Maximum Concurrent File Transfers (with RAM expansion) 10000
Docker DSM
Maximum Docker DSM Number (Licenses required) 35 (including 1 Free License) (Learn more)
Document Viewer
Download Station
Maximum Concurrent Download Tasks 80
exFAT Access (optional)
HiDrive Backup
MailPlus / MailPlus Server
Free Email Accounts 5 (Licenses required for additional accounts)
Recommended MailPlus Client Number Up to 400 (Btrfs) / 400 (EXT4)
Maximum Server Performance 3,283,000 (Btrfs) / 1,992,000 (EXT4) emails per day, approx. 100.2 GB (Btrfs) / 60.8 GB (EXT4)
Notes
  • The CPU and RAM usages were both under 80% when testing recommended client numbers.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Office
Maximum Users 1600
Maximum Simultaneous Editing Users 100
Notes
  • CPU and RAM usage were both under 80% when testing the recommended number of clients.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
PetaSpace
Snapshot Replication
Maximum Snapshots per Shared Folder 1024
Maximum Snapshots of all Shared Folder 65536
Surveillance Station
Maximum IP cam (Licenses required) 75 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 2250 FPS @ 720p (1280x720)
1050 FPS @ 1080p (1920×1080)
600 FPS @ 3M (2048x1536)
500 FPS @ 5M (2591x1944)
Total FPS (MJPEG)* 900 FPS @ 720p (1280x720)
450 FPS @ 1080p (1920×1080)
280 FPS @ 3M (2048x1536)
200 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding Group 1 - Type 2 (See more)
Maximum Transcoding Channel Number 1 channel, 30 FPS @ 720p (1280x720), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
VPN Server
Maximum Connections 30
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • 16GB DDR4 ECC SO-DIMM
  • Expansion Unit: DX1215 X 2
  • VS360HD
  • Synology Ethernet Adapter E10G15-F1
  • Synology Ethernet Adapter E10G17-F2
